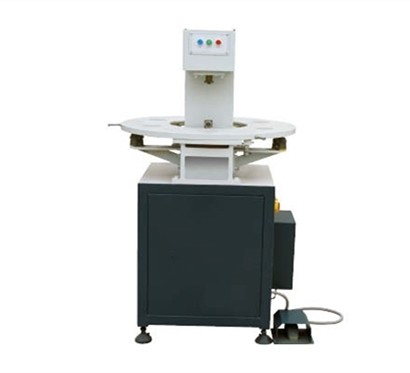

Aluminum Window Machine 6 Position Hardware Lock Hole Punching Machine

Model Number : LYA-50

Certification : CE ISO

MOQ : 1set

Price : By negotiation

Supply Ability : 30 sets per month

Delivery Time : 20 days

Packaging Details : 1, plastic stretch film coating; 2, steel pallet and plywood case package; 3, LCL or FCL by sea transportation;

Function : Hardware Lock Hole Punching

Punching pressure : 50kn

Input Power : 12.2KW

Product : Cheap Aluminum Window Machine 6 Position Hardware Lock Hole Punching Machine

Punching travel : 30mm

Punching size : 200x290mm

Contact Now

Cheap Aluminum Window Machine 6 Position Hardware Lock Hole Punching Machine

Product parameter

1, Used for punching processing in the manufacture of aluminium window and door.

2, Every combination punching die equipped with the machine can achieve various punching process, by-changing processing position, various types profiles can be processed.

3, Adopt disk worktable equipped with six dies. Each die be used at any time by the worktable rotating, which greatly increased the production efficiency

Item	Parameter
Power supply	380V 50Hz (3P)
Motor supply	2.2kw
Rotary speed	1420r/min
Rated oil pump pressure	16Mpa
Capacity of oil box	20L
Rated pressure	50KN
Punching travel	30mm
Punching travel times	30c/min
Height:	185mm
Dimension	L900mm×W900mm×H1450mm

Our Services

Aluminum Window Machine 6 Position Hardware Lock Hole Punching Machine
